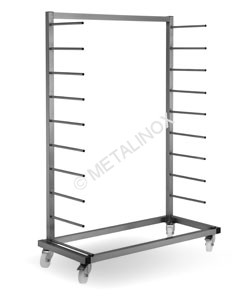

Trolleys for boards

single or double

Capacity 10-20 boards
Distance between guides: 145 mm

Technical Characteristics

• Supporting structure and base made of AISI 304 stainless steel, section 40x40

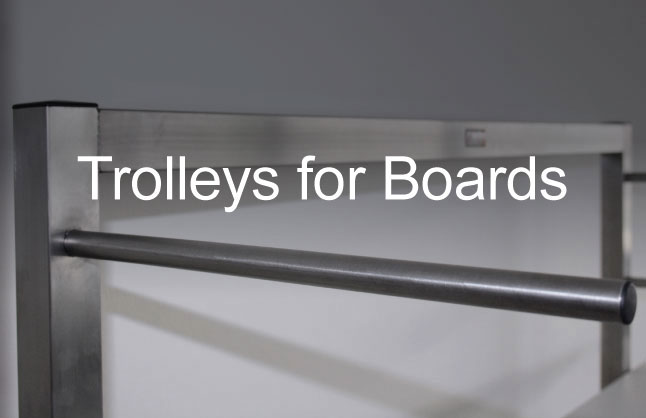

• Boards rails made of stainless steel AISI 304 round tube Ø 16
• White polyamide pivoting wheels with pressed steel housing, zinc finishing Ø 100x35 (optional with inox support)
• All trolleys can be supplied welded or disassembled on request

Models trolleys for boards:

Capacity 10 TRAYS 10 TRAYS Models Welded CBF1012 CBF1016 Code 807665 807675 Mod. Disassembled CBF1012S CBF1016S Code 807670 807680 Length mm 1200 1600 Depth mm 540 540 Height mm 1700 1700

Capacity 10 TRAYS 10 TRAYS Models Welded CBF2012 CBF2016 Code 807685 807695 Mod. Disassembled CBF2012S CBF2016S Code 807690 807700 Length mm 1200 1600 Depth mm 700 700 Height mm 1700 1700
